Power Energy Meters

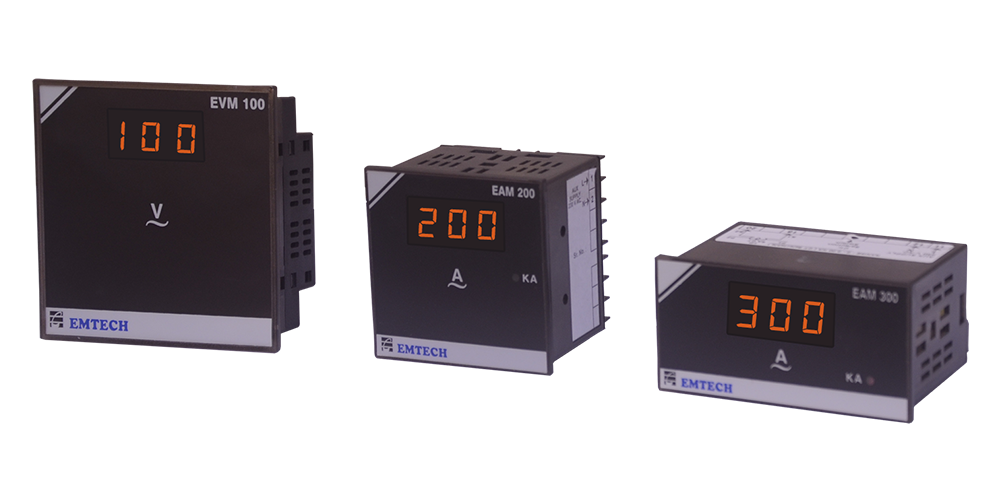

MODEL	EAM / EVM-100	EAM / EVM-200	EAM / EVM-300
Dimension ( H x W x D ) mm	96 x 96 x 40	72 x 72 x 60	48 x 96 x 70
Panel Cutout (H x W )	92 x 92	68 x 68	44 x 92
Input - Ampere ( Ac )	5A Ac
CT Ratio	5A to 2 KA ( Configurable )
Voltage	0 to 500 V Ac
Accuracy	Class 1.0
Power Supply	230 V Ac, ±10% , 50Hz.
Note	30 A Ac Direct CT at back side on request

Single Phase AC Panel Meter
