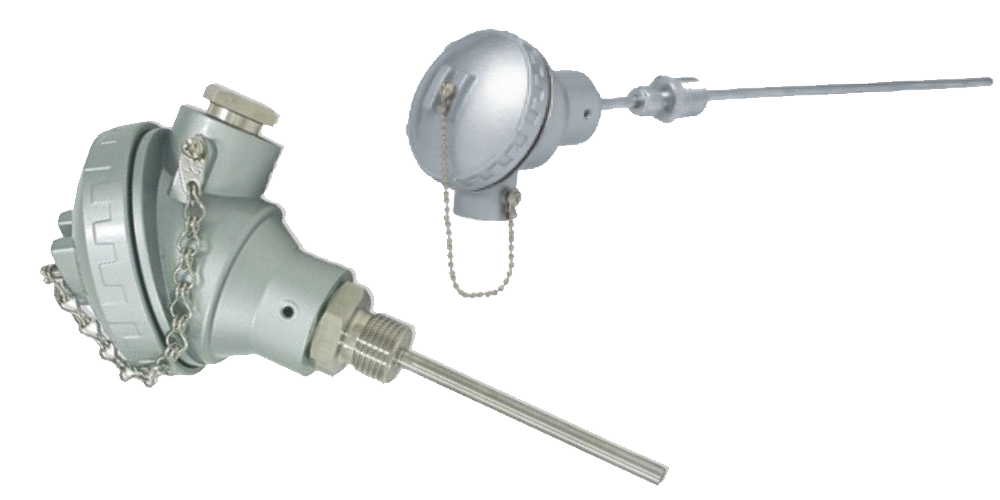

Sensors

Simplex (2/3 Wire) Duplex (4/6 Wire)
Sheath MOC	SS 304 / 316 (According to process).
Accuracy	Class A,1 / 3B, B, 2B.
Sheath Construction	Conventional / MI
Sheath length/OD	According to the application.
Process Connection	Fixed or adjustable, BSP, NPT or as per mounting, MOC:SS (304, 316).
Head Type	Weather proof / Flame Proof

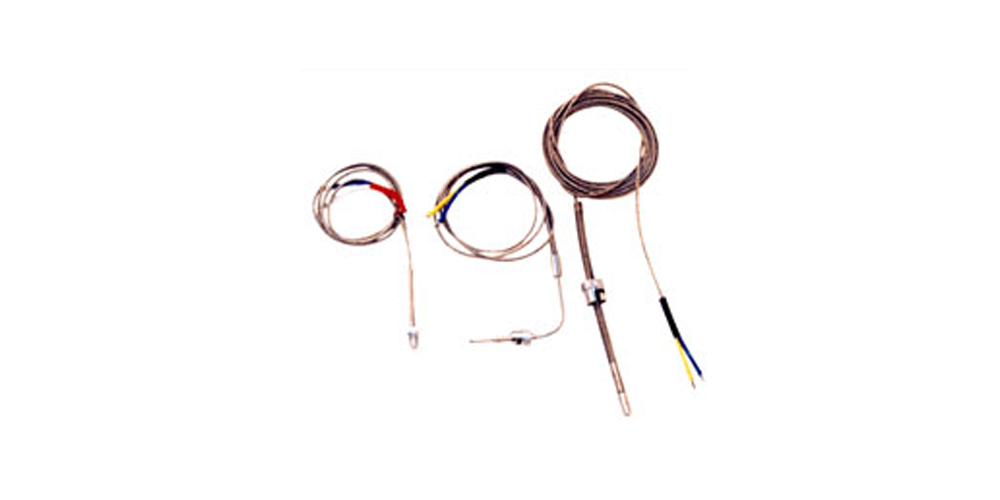

Simplex / Duplex / Multipoints
Sheath MOC	SS 304 / 316 / 310 / Inconel / Ceramic-610 / KER710 / Silicon carbide
Sheath Construction	Conventional / MI.
Sheath length/OD	According to the application.
Process Connection	Fixed or adjustable, BSP, NPT or as per mounting, MOC: SS (304, 316).
Junction Type	Grounded / Ungrounded

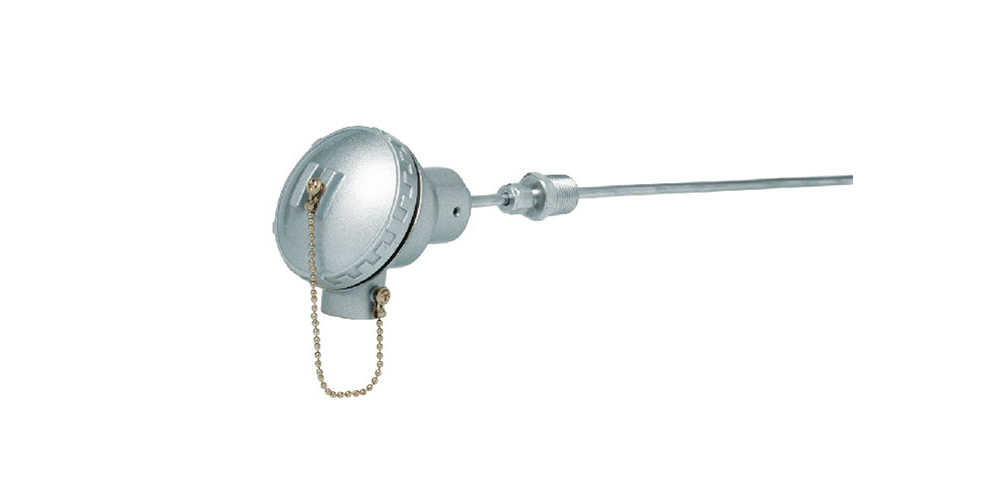

RTD - Head Type

Simplex (2/3 Wire) Duplex (4/6 Wire)
Sheath MOC	SS 304 / 316 (According to process)
Accuracy	Class A, 1/3B, B, 2B
Sheath Construction	Conventional / MI.
Sheath length/OD	According to the application.
Process Connection	Fixed or adjustable, BSP, NPT or as per mounting, MOC: SS (304, 316).
Cable Type	2/3/4/6/8-Core as per requirement
